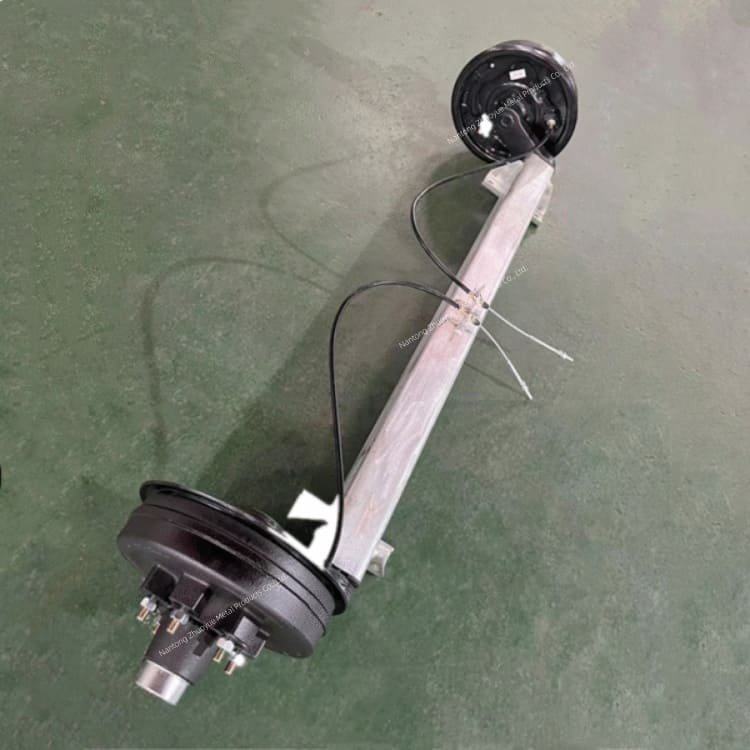

Custom torsion axle with rubber suspension and optional electric or hydraulic brakes.
Built for durability and smooth towing across utility, cargo, and heavy-duty trailers.
| Material | Steel |
|---|---|
| Surface Treatment | Black Paint/Hot-dipped Galvanization |
| Brake | Electric/Hydraulic Brake |
| Package | Steel Pallet |
| Delivery Time | About 15 Days |
| Port | Shanghai/Nantong Port |
Our Torsion Axle with Electric or Hydraulic Brakes is engineered for strength, stability, and long-term performance. Designed to minimize road shock and improve ride quality, this axle is ideal for utility, cargo, and equipment trailers. Brake-ready with electric or hydraulic options, it offers unmatched flexibility and safety for heavy-duty towing applications.
Rubber Torsion Suspension – Delivers independent wheel travel, less bounce, and smoother ride
Brake Compatibility – Available with electric or hydraulic brakes for versatile trailer builds
Heavy-Duty Construction – Built with high-strength steel tube for 2000–7000 lbs capacity
Low Maintenance Design – No leaf springs, no hangers, fewer wear points
Custom Sizing Available – Adjustable hub face and spring center dimensions
Surface Coating Options – Raw steel, e-coated, painted, or galvanized finish

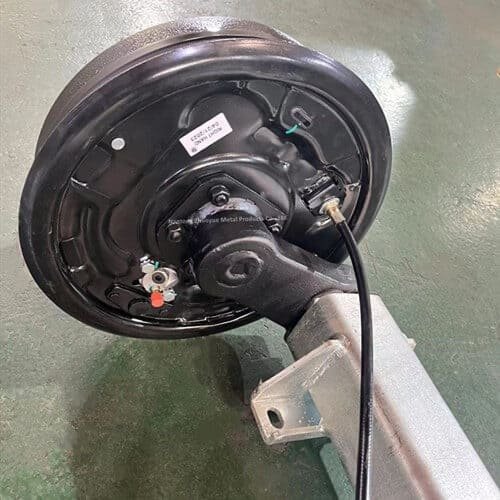

There are two types of the torsion shaft, one type is with the hydraulic oil nipple and handbrake cable, and the other is with the electric wire.
| Specification | Detail |
|---|---|
| Axle Type | Rubber torsion axle |
| Load Capacity | 2000 – 7000 lbs |
| Brake Type | Electric or Hydraulic Drum/Disc |
| Tube Size | 2″ to 3.5″ round or square |
| Hub Face Width | Customizable |
| Suspension Travel | Standard, high, or low profiles |
| Mounting | Side or top mount |
| Finish Options | Painted, galvanized, or e-coated |
Perfect for:
Utility trailers
Enclosed cargo trailers
Equipment haulers
RV or camper trailers
Off-road or overland trailers
15+ years of torsion axle and trailer parts manufacturing
OEM-ready with full customization support
High-strength materials with precision welding and machining
Exported globally to the US, Canada, Australia, and the EU
Fast delivery and consistent quality backed by factory pricing
