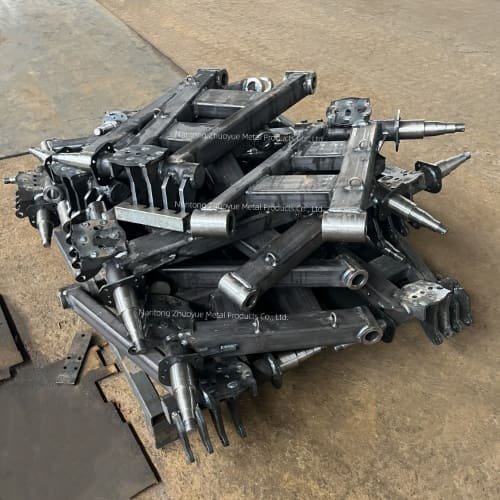

Independent Suspension Systems: Built for Off-Road Strength and Smooth Travel
Customizable Trailing Arm Suspensions Engineered for Extreme Terrain, Heavy Loads, and Smooth Rides
Table of Contents
Introduction
For trailers built to go further, independent suspension systems are the foundation of stability and control. At Zhuoyue Metal, we engineer and manufacture precision suspension components tailored for the toughest environments and terrainβfrom remote outback expeditions to high-speed highway hauling.
Looking for off-road suspension you can trust? Our suspension arms and bracket kits are customizable to your trailer specs.
π Precision-Engineered Suspension Systems
At Zhuoyue Metal, our independent suspension systems are fabricated with heavy-duty steel, precise laser-cut geometry, and welding techniques to ensure unmatched durability and axle articulation.
π© Key Features:
Fully independent trailing arm design
Compatible with single, tandem, and tri-axle setups
Shock absorber and coil spring integration
High ground clearance for rough terrain
Bolt-on or weld-on installation options
π§° Customization Options:
Load capacity: 750kg β 4,500kg per axle
Arm length and offset options
Hub pattern and brake compatibility
Painted, galvanized, or powder-coated finish
𧩠Core Components & Competitive Advantages
To guarantee durability and performance in off-road conditions, we use high-grade materials and precision-built components:

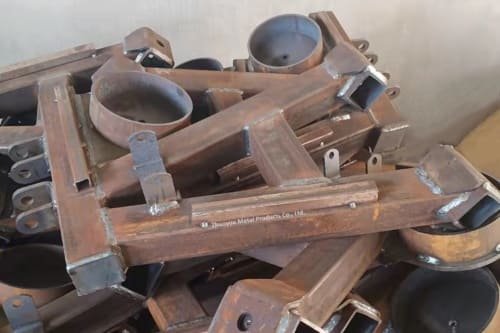

π§ Suspension Arms
Heavy-duty boxed steel arms, laser cut and robot welded
Designed for maximum articulation and strength
Anti-corrosion coatings for long-term use

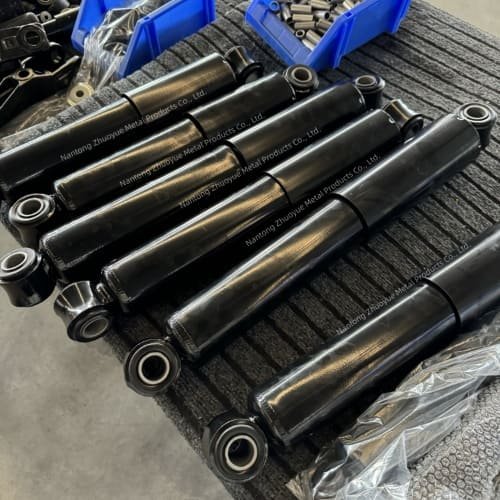

π Shock Absorbers
Performance-tuned twin-tube shocks
Designed for heat dissipation and consistent damping
Optional gas-charged or hydraulic shock options
π Coil Springs / π¨ Airbags
Matched to trailer weight class and ride height
Coil: Standard for rugged simplicity
Airbag: Adjustable for luxury or variable payload

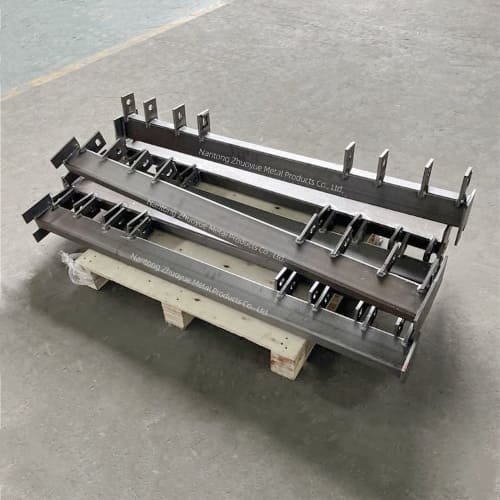

π© Mounting Brackets & Bushings
CNC-formed brackets for bolt-on or weld-on fitment
Durable polyurethane or rubber bushings
Built to reduce road noise and vibration
All components undergo rigorous quality checks to ensure compatibility, longevity, and ease of integration with your trailer setup.
βοΈ Technical Specifications by Suspension Type
To further assist our customers in selecting the right system, we break down the specifications of our two main independent suspension options. Each is tailored to different use cases, performance expectations, and trailer designs.
π Coil Spring Suspension Systems
Main Components:
Coil Springs: Custom-rated per trailer weight class (750kgβ4500kg per axle), available in standard or progressive load ratings.
Shock Absorbers: Twin-tube or gas-charged options with custom damping curves.
Suspension Arms: Heavy-duty steel, customizable offset, bolt-on or weld-on.
Braking Options: Compatible with electric drum, hydraulic disc, or electric-over-hydraulic brakes.
Mounting Kits: CNC-formed brackets with high-durometer polyurethane bushings.
Popular Applications: Camper trailers, off-road trailers, tiny house trailers.

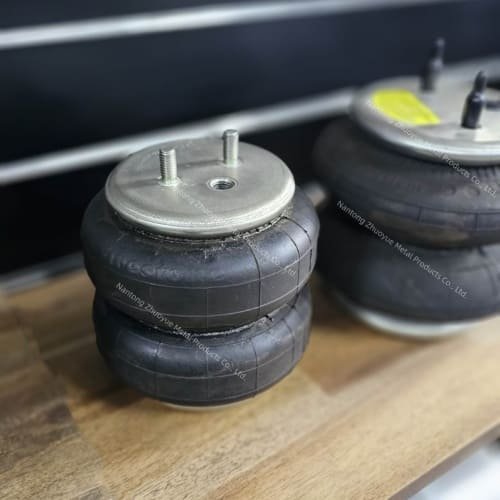

π¨ Airbag Suspension Systems
Main Components:
Airbags: High-performance, industrial-grade rubber bellows rated for 1000kgβ4500kg per axle.
Compressor Kit: Onboard compressor system with air tank and digital pressure controls (optional).
Height Control Valves: Auto-leveling or manual control valves for dynamic adjustment.
Shock Absorbers: Tuned for smooth rebound; optional internal bypass or remote reservoir.
Chassis Integration Kit: Includes laser-cut mounts, linkages, and reinforcement brackets.
Popular Applications: Luxury RVs, expedition trailers, heavy-haul utility builds.
π Each suspension system is engineered to integrate seamlessly with your chassis. We support all hub patterns, axle diameters, and brake types to suit your regional standards.
π© Need help selecting the right specs for your build?
π Zhuoyue Metal Production Capabilities
5 advanced production lines with CNC cutting, bending, and robotic welding
In-house design and engineering team for OEM/ODM solutions
Quality assurance with ISO-certified materials and testing
High-volume export capability with packaging and logistics support
Specialized in off-road chassis, suspension, brackets, and frame fabrication
π‘ Coil Spring vs. Airbag Suspension: Which One Fits Your Trailer Best?
| Feature | π Coil Spring Suspension | π¨ Airbag Suspension |
|---|---|---|
| Ride Comfort | Firm but reliable; good for general off-road use | Softer and adjustable ride; superior comfort on varied terrain |
| Load Handling | Fixed rate; best for consistent loads | Adjustable air pressure; ideal for variable load conditions |
| Durability & Maintenance | Simple, fewer parts; minimal maintenance | More complex system; air lines and compressor may need servicing |
| Installation | Easier, with fewer components | Requires compressor, valves, air tank (more complex) |
| Height Adjustability | Fixed height unless paired with lift blocks | Fully adjustable ride height via air pressure |
| Off-Road Performance | Very capable with high articulation | Excellent, especially for overland trailers with shifting loads |
| Cost | More affordable upfront | Higher cost due to added components and complexity |
| Best Use Cases | Camper trailers, utility trailers, consistent loads | Luxury RVs, expedition trailers, trailers with varying payloads |
π§ Our Recommendation:
For rugged, low-maintenance builds or standardized off-road trailers β Go with coil spring suspension.
For premium comfort, adjustable load handling, or high-end RV builds β Choose airbag suspension systems.
Engineered Suspension Systems for Extreme Terrain
We offer customizable suspension kits for both coil and airbag configurations.
Let us know your trailer type and terrain use, and weβll recommend the best setup.
π Compatible Trailer Types
Our independent suspension systems are ideal for a wide range of trailer types and usage environments:
πΉ Off-Road Campers
Designed for rugged terrain and long-distance expeditions where ground clearance and flexibility are critical.
πΉ Teardrop & Overland Trailers
Perfect for compact builds that require agility and minimal vibration transfer while driving off-grid.
πΉ Toy Haulers & Utility Trailers
Provides enhanced load stability for trailers carrying sports vehicles, tools, or modular equipment.
πΉ Military or Tactical Platforms
Heavy-duty applications where terrain varies drastically, and high reliability is non-negotiable.
β Frequently Asked Questions (FAQ)
β What are the advantages of independent suspension over leaf springs?
Independent suspension allows each wheel to move independently, which significantly improves off-road performance, ride comfort, and axle articulation compared to traditional leaf springs.
β Can Zhuoyue customize suspension arms for my axle size and hub?
Yes, we offer full OEM and ODM solutions. Our engineering team will design suspension arms and mounts tailored to your specific axle diameter, hub bolt pattern, and intended load.
β Whatβs the lead time for customized suspension kits?
For standard orders, production usually takes 2-3 weeks. Custom designs may take longer depending on complexity and order quantity.
β Do you offer full suspension kits or just parts?
We can supply complete suspension kits (arms, brackets, shocks, springs) or individual components based on your manufacturing needs.
π Why Choose Zhuoyue Metal?
π Full in-house fabrication and welding
βοΈ OEM/ODM engineering support
π§ Compatibility with global trailer platforms
π Export-ready designs for Australia, North America, and Europe
π Durable coatings for off-road and coastal conditions
π© Request a Quote for Custom Suspension Systems
From overland campers to tactical trailers, Zhuoyue Metal provides reliable independent suspension systems built for performance and precision.
